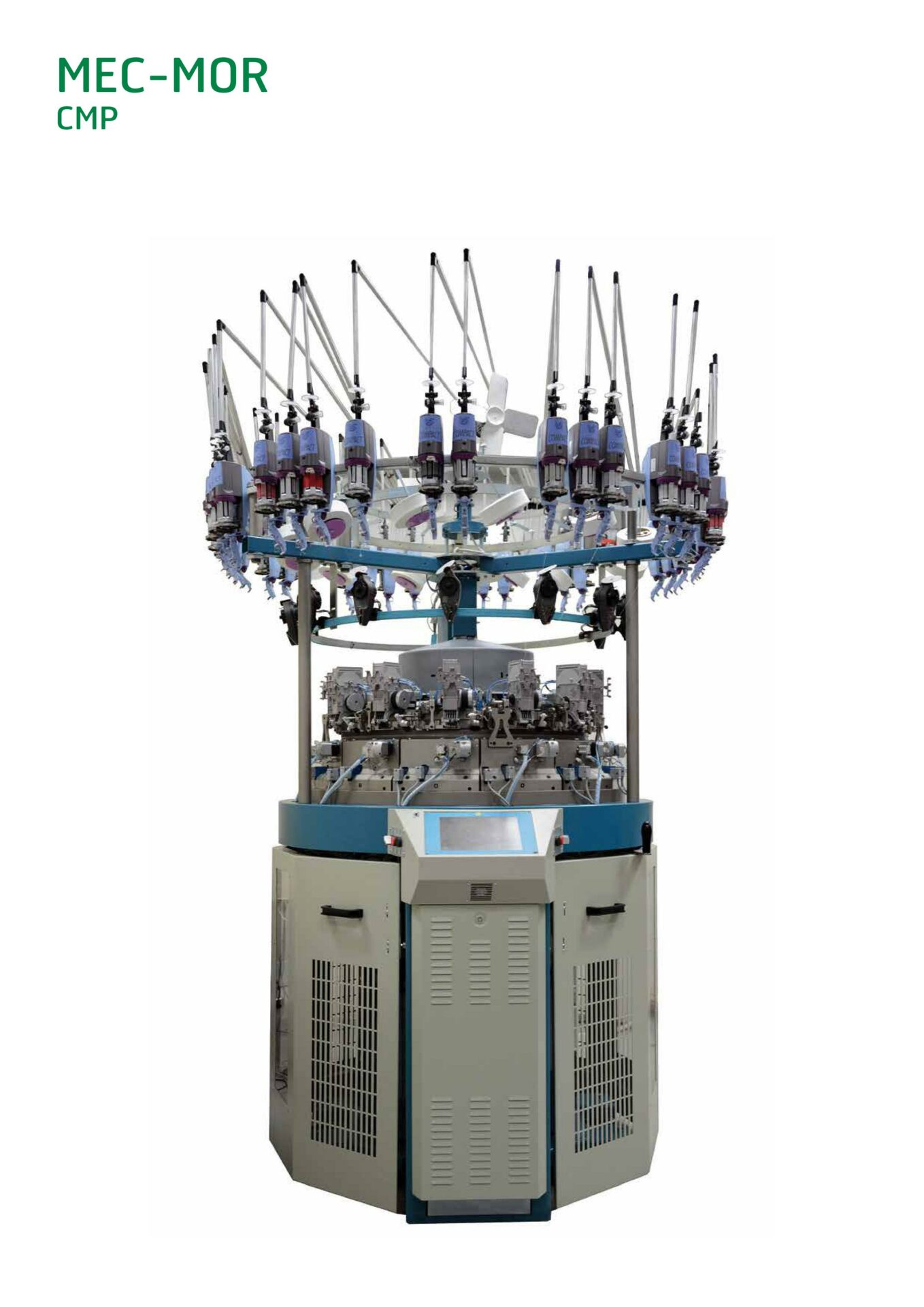

MEC-MOR CMP GARMENT LENGTH CIRCULAR WITH RIB BORDER

GARMENT LENGTH CIRCULAR KNITTING MACHINE
WITH RIB BORDER
รุ่น : MEC-MOR CMP
สำหรับ : ทอผ้า – The new double jersey circular Mec-Mor CMP with open variable panel (Variatex Technology) for the production of garments
in weft knitting offers a high quality finished item (circular knitting machine) and high productivity with large number of feeds.
The variable width of the fabric panel allows to set the number of working needles for the required product which in turn
enables with one single machine to produce all the sizes without wastages. This 33” diameter machine has gauges ranging
from E7 to E20 with 12 feeds. It is designed with needle to needle selection on 3 technical ways both for the cylinder and for
the dial. Each feed is equipped with a combined knitting/transfer system, therefore at every revolution of the cylinder the
programming system can set each single feed either as a “knit feed” OR as a “transfer feed”, achieving every knitting stitch
composition with maximum productivity. Transfer can be one way (from dial to cylinder or from cylinder to dial) or double way
(the transfer takes place at the same time in both directions on the same feed). A “double hunch” transfer cam is design to
perform with success even with yarns that are dificult to work with. The yarn feeding system uses a 4 colour striper with the
possibility of feeding bare lycra when producing stretch garments. The striper is electronically controlled by a step by step
motor and a pneumatic selector. Machine features stitch structures with many colours or with various types of yarn, like:
– jacquard (single and double jersey), with various color possibility per course
– 4 color stripes
– plated effects
– pockets, etc
